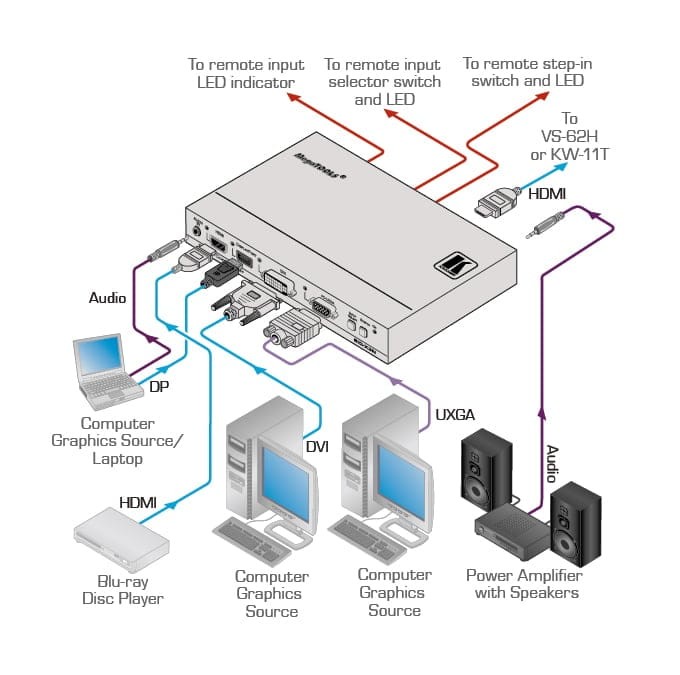

The SID−X3N is an HDMI transmitter, step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source when connected to the VS−62H.
Charakterystyczne cechy produktu:
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant. - Works with sources that support HDCP repeater mode.
- HDMI Support - Deep Color, x.v.Color™ and 3D.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- Data Equalization and Reclocking.
- Input Signal Detection - Based on video clock presence.
- Automatic Input Selection - Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- Local Balanced Audio De-Embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- Local Step-In Switching - Button & contact closure.
- Supports Programmable Step-In Functionality - Over HEC enabled HDMI cables, when used with compatible switchers such as the VS−62H.
- Power Supply - Requires independent power supply.
- Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Zastosowanie:
- Boardrooms.
- Presentation rooms.
DANE TECHNICZNE
| INPUTS: | 1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI−D on a DVI−I connector 1 VGA on a 15−pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack. |
| OUTPUTS: | 1 HDMI on an HDMI connector, 1 unbalanced stereo audio in a 3.5mm mini jack. |
| PORTS: | 1 RS−232 3−pin terminal block for programming, 1 USB power max. 1.5A. |
| CONTROLS: | Front panel buttons, remote step−in switch, remote input selection switches, RS−232. |
| ANALOG AUDIO INPUT: | Maximum level − 3Vpp. |
| REMOTE LED IMPEDANCE: | 5V, 300Ω approx. |
| STANDARDS: | HDMI with x.v.Color™ and 3D; HDCP: works with sources that support HDCP repeater mode. |
| MAXIMUM DATA RATE: | 6.75Gbps (2.25Gbps per graphic channel). |
| POWER CONSUMPTION: | 12V DC, 1.1A. |
| COMPLIANCE STANDARDS: | CE, UL. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | –40° to +70°C (–40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| COOLING: | Convection, vents. |
| ENCLOSURE TYPE: | Aluminium. |
| SHIPPING DIMENSIONS: | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H |
| SHIPPING WEIGHT: | 1.4kg (3.1lbs) approx. |
| INCLUDED ACCESSORIES: | Power adapter. |
| OPTIONS: | RK−T2B 19“ rack adapter, RTBUS−12, RTBUS−22, SID−X1NBP Kit (substitute black top plate for the SID−X2N to blend in with the color of the modular TBUS−10xl). |
