Transmiter sygnału wideo - KRAMER PT-110XL (nadajnik)
Cena regularna:
Cena (EUR): 337,00 €
Cena regularna:
Cena (EUR): 273,98 €
・Kup teraz i zapłać za 30 dni
towar niedostępny

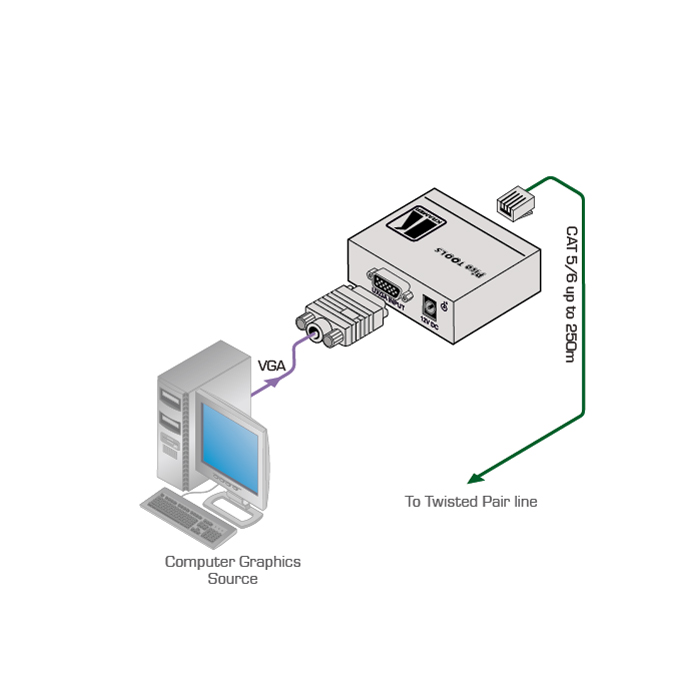

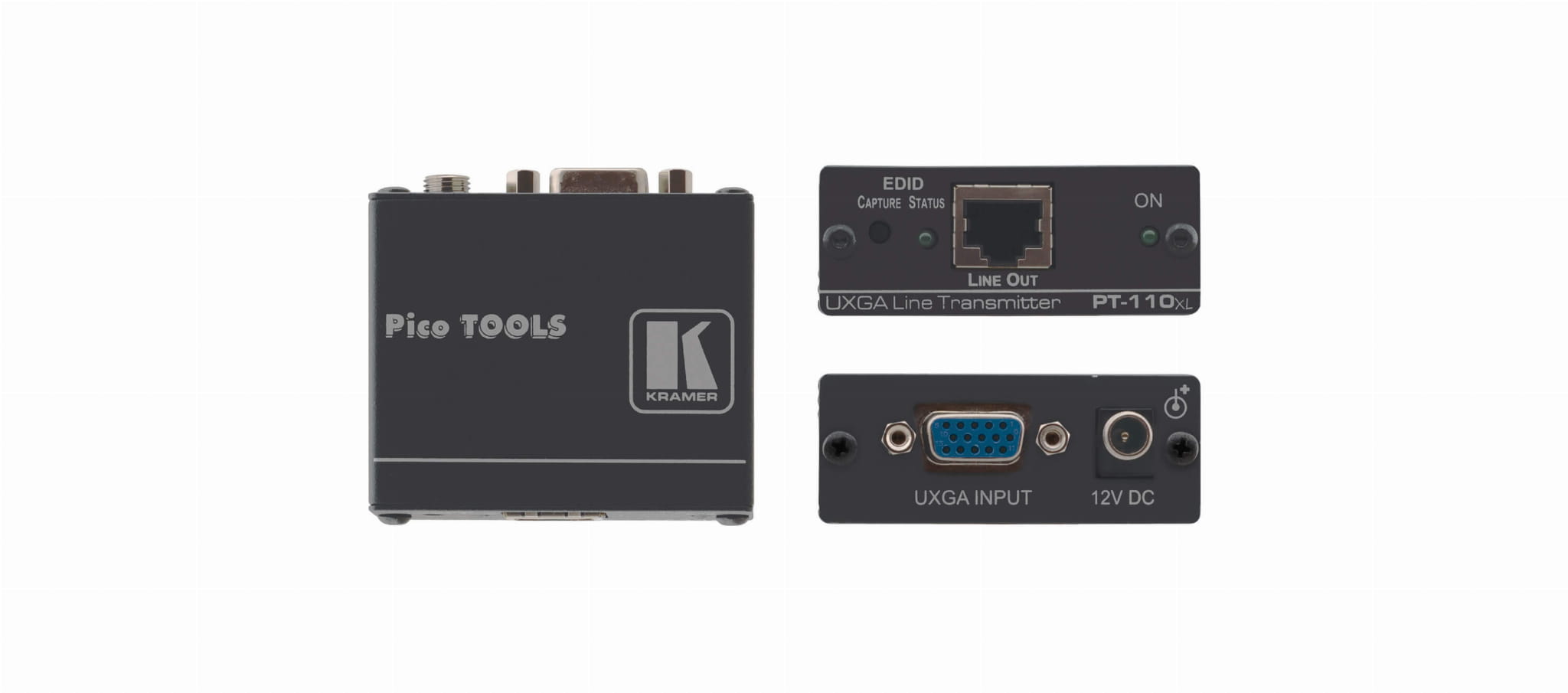

The PT-110xl is an extended range UXGA line transmitter that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120xl or TP-120 receiver.
Charakterystyczne cechy produktu:
- Resolution - Up to WUXGA & 1080p.
- HDTV Compatible.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Extended Transmission Range - Up to 250m (820ft) when used with Kramer’s twisted pair xl receivers (such as PT−120xl, TP−122xl or TP−126xl).
- EDID Capture - Copies and stores the EDID from a display device.
- Increased Noise Immunity - An increased level of protection against noise, spikes and interference in adverse environments.
- Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Zastosowanie:
- Presentation and multimedia applications
- Long-range graphics distribution for schools, hospitals, security, and stores
DANE TECHNICZNE
| INPUT: | 1 VGA/UXGA on a 15−pin HD connector. |
| OUTPUT: | 1 twisted pair on an RJ−45 connector. |
| RESOLUTION: | Up to WUXGA, 1080p. |
| RANGE: | Up to 250m (820ft). |
| S/N RATIO: | Paired with PT−120xl, better than 70dB (worst case). |
| COUPLING: | AC. |
| POWER CONSUMPTION: | 12V DC, 285mA. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| SHIPPING DIMENSIONS: | 17.40cm x 12.00cm x 8.60cm (6.85" x 4.72" x 3.39" ) W, D, H |
| SHIPPING WEIGHT: | 0.5kg (1.1lbs) approx. |
| INCLUDED ACCESSORIES: | Power supply. |
| OPTIONS: | RK−4PT 19" rack adapter. |
