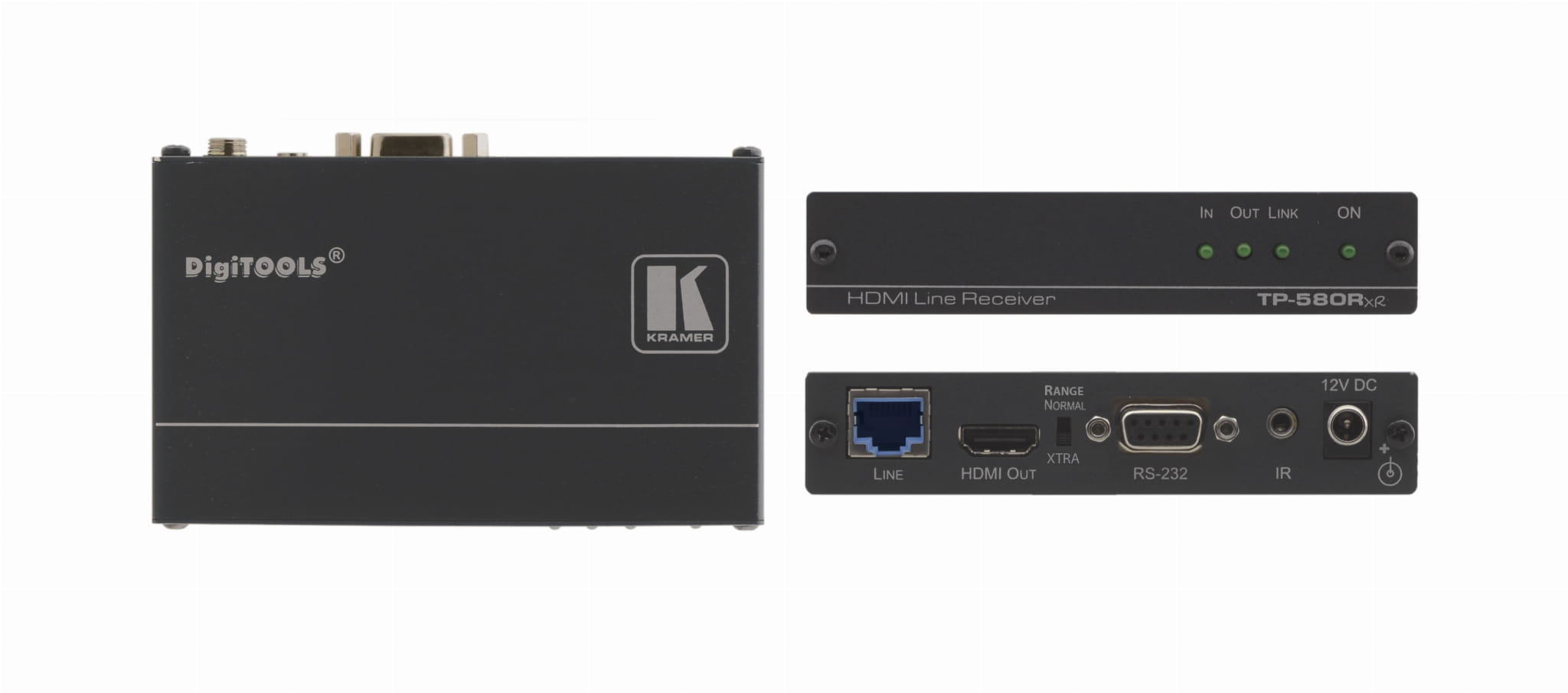

Transmiter sygnału wideo - KRAMER TP-580RXR (odbiornik)
Cena regularna:
Cena (EUR): 536,00 €
Cena regularna:
Cena (EUR): 435,77 €
・Kup teraz i zapłać za 30 dni
towar niedostępny
TP-580Rxr to wysokowydajny odbiornik HDBaseT o rozszerzonym zasięgu dla sygnałów 4K@60Hz (4:2:0) HDMI, RS-232 i IR przesyłanych skrętką. Rozszerza sygnały wideo do 100 m przez kable miedziane CAT z rozdzielczością wideo do 4K@60Hz (4:2:0) 24bpp i zapewnia jeszcze większy zasięg w przypadku niższych rozdzielczości wideo HD.
Charakterystyczne cechy produktu:
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
- System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.
- Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
Zastosowanie:

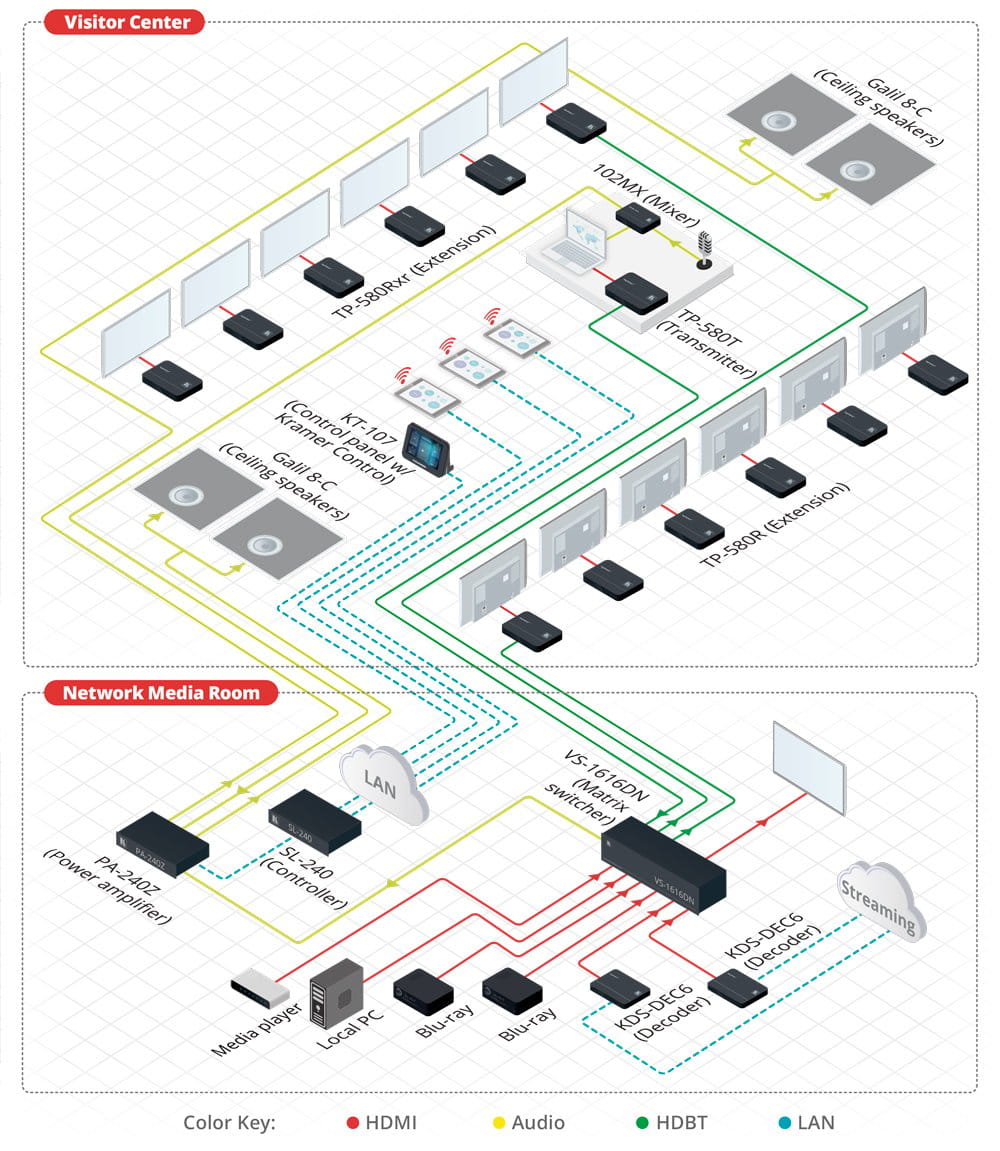

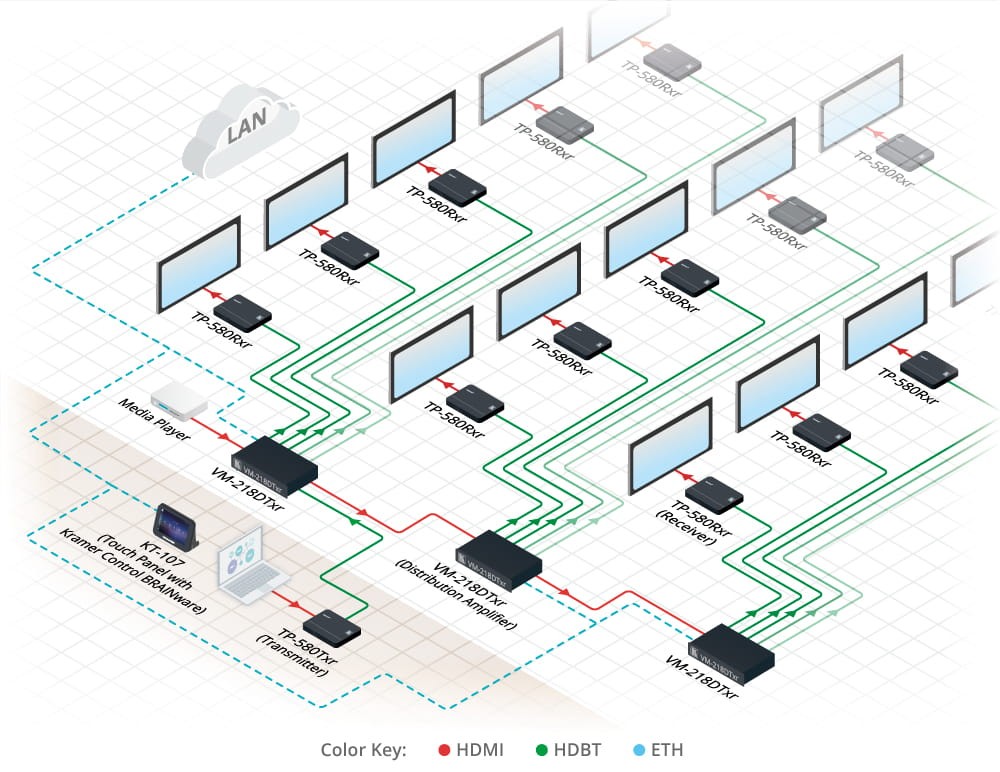

- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
DANE TECHNICZNE
| INPUTS: | 1 HDBaseT twisted pair RJ−45 connector. |
| OUTPUTS: | 1 HDMI connector. |
| PORTS: | 1 IR on a 3.5mm mini jack, 1 RS−232 on a 9−pin D−sub connector. |
| MAX. DATA RATE: | 10.2Gbps (3.4Gbps per graphic channel). |
| RS-232 BAUD RATE: | 115200. |
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
| POWER CONSUMPTION: | 12V DC, 500mA. |
| OPERATING TEMPERATURE: | 0° to 40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| SHIPPING DIMENSIONS: | 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H |
| SHIPPING WEIGHT: | 0.7kg (1.6lbs) approx. |
| INCLUDED ACCESSORIES: | Power supply. |
| OPTIONS: | RK−3T 19” rack mount. |
