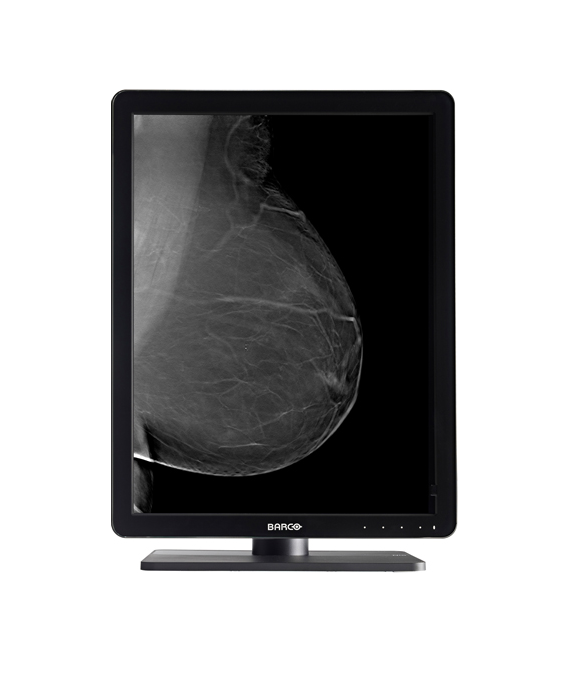

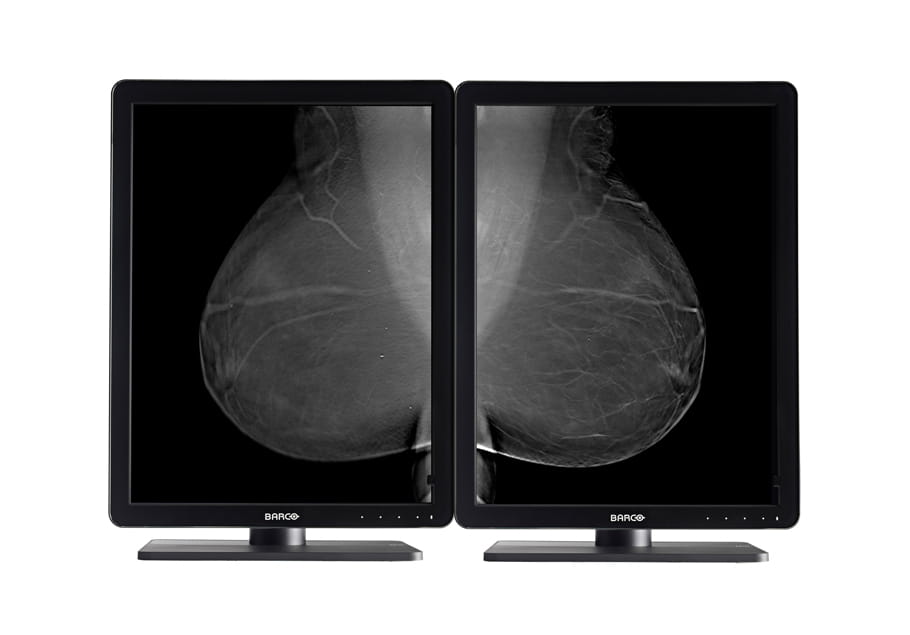

Monitor medyczny Barco Nio 5MP LED MDNG-5221

[EOL*]- PRODUKT WYCOFANY ZE SPRZEDAŻY

Model ten z powodu zakończonej produkcji jest wyprzedawany z magaznynów producenta.

W celu uzyskania informacji odnośnie dostępności prosimy o kontakt telefoniczny.

Zachęcamy do zapoznania się z pozostałą ofertą w kategoriach

Monitory medyczne.

Aby otrzymać wycenę indywidualną prosimy o przesłanie zapytania przez zakładkę - CENA SPECJALNA

Posiadamy status BARCO HEALTHCARE AUTHORIZED PARTNER - zobacz certyfikat

CERTYFIKOWANY OŚRODEK KALIBRACYJNY MONITORÓW MEDYCZNYCH

 - kalibracja monitorów medycznych oraz testy specjalistyczne

- więcej informacji oraz formularz zapytania - LINK do strony

Screen technology

Dual domain IPS, Normally Black

Active screen size (diagonal)

541 mm (21.3")

Active screen size (H x V)

459.8 x 375.3 mm (18.1" x 14.77")

Aspect ratio (H:V)

5:4

Resolution

5 MP (2560 x 2048 pixels)

Pixel pitch

0.165 mm

Gray imaging

Yes

Bit depth

10 bit

Viewing angle (H, V)

178°

Uniformity correction

ULT

Ambient light presets

Yes, reading room selection

Front sensor

Yes

Maximum luminance

1020 cd/m²

DICOM calibrated luminance

500 cd/m²

Contrast ratio (panel typical)

1200:1

Response time ((Tr + Tf)/2) (typical)

12.5 ms

Housing color

RAL 9003 / RAL 9004

Video input signals

DVI
DisplayPort

USB ports

1x USB 2.0 upstream (endpoint)
3x USB 2.0 downstream

Power rating

24 VDC, 4 A; 5 VDC, 0.5 A

Power requirements

This device shall only be powered by the following medical approved power supply:
Sinpro, type CPU110-201
Ratings marked on the medical power supply:

• Input rating: 100–240 VAC, 1.5–0.6 A, 47-63 HZ
• Output rating: 24 VDC, 4.58 A; 5 VDC, 0.5 A

Power consumption

43 W (nominal)
< 0.5 W (hibernate)
< 0.5 W (standby)

Dimensions with stand (W x H x D)

Portrait: 407 x 523~623 x 235 mm
Landscape: 493.5 x 479~579 x 235 mm

Dimensions w/o stand (W x H x D)

407 x 494 x 84 mm

Dimensions packaged (W x H x D)

676 x 565 x 317 mm

Net weight with stand

13.25 kg

Net weight w/o stand

8.25 kg

Net weight packaged

19.61 kg (without optional accessories)

Tilt

-10° to +30°

Swivel

-45° to +45°

Pivot

0° to 90°

Height adjustment range

100 mm

Mounting standard

VESA (100 mm)

Screen protection

Protective, anti-reflective glass cover

Recommended modalities

All digital images, including digital mammography

Certifications

FDA 510(K) K133984 for General Radiology
CE1639 (MDD 93/42/EEC; A1:2007/47/EC class IIb product)
CCC (China), KC (Korea), PSE (Japan), Inmetro (Brazil), BIS (India), EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan)

Safety specific:
IEC 60950-1:2005 + A1:2009
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
IEC 60601-1:2005 + A1:2012
EN 60601-1:2006 + A1:2013 + A12:2014
ANSI/AAMI ES 60601-1:2005 + R1:2012
CAN/CSA C22.2 No. 60601-1:14

EMI specific:
IEC 60601-1-2:2014 (ed4)
EN 60601-1-2:2015 (ed4)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)

Environmental:
China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive

Supplied accessories

User guide
Documentation disc
System disc
Video cable (1 x DisplayPort)
USB 2.0 cable
Mains cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA5-15P), Chinese (CCC))
External power supply

Optional accessories

Graphics board

QA software

MediCal QAWeb

Warranty

5 years, including 45000 hrs backlight warranty

Operating temperature

0 °C to 40 °C (15 °C to 30 °C within specs)

Storage temperature

-20 °C to 60 °C

Operating humidity

8% to 80% (non-condensing)

Storage humidity

5% to 85% (non-condensing)

Operating pressure

50 kPa minimum

Storage pressure

50 to 106 kPa
