Przełącznik sygnałów wideo - KRAMER VS-62H
Cena regularna:
Cena (EUR): 1 220,00 €
Cena regularna:
Cena (EUR): 991,87 €
・Kup teraz i zapłać za 30 dni
towar niedostępny

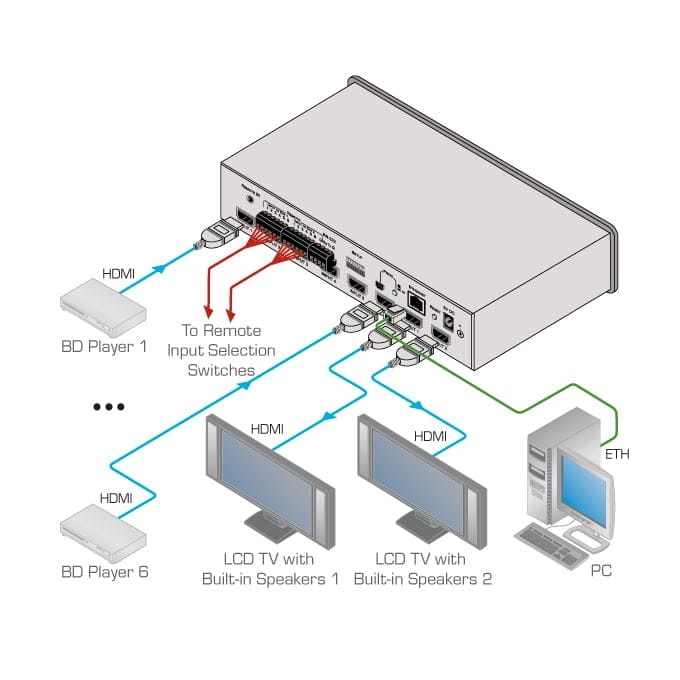

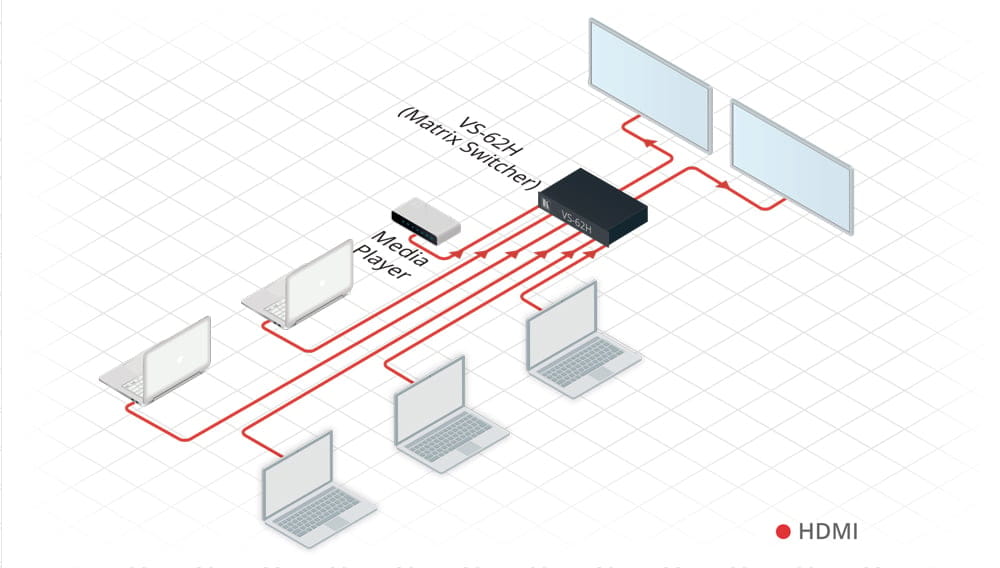

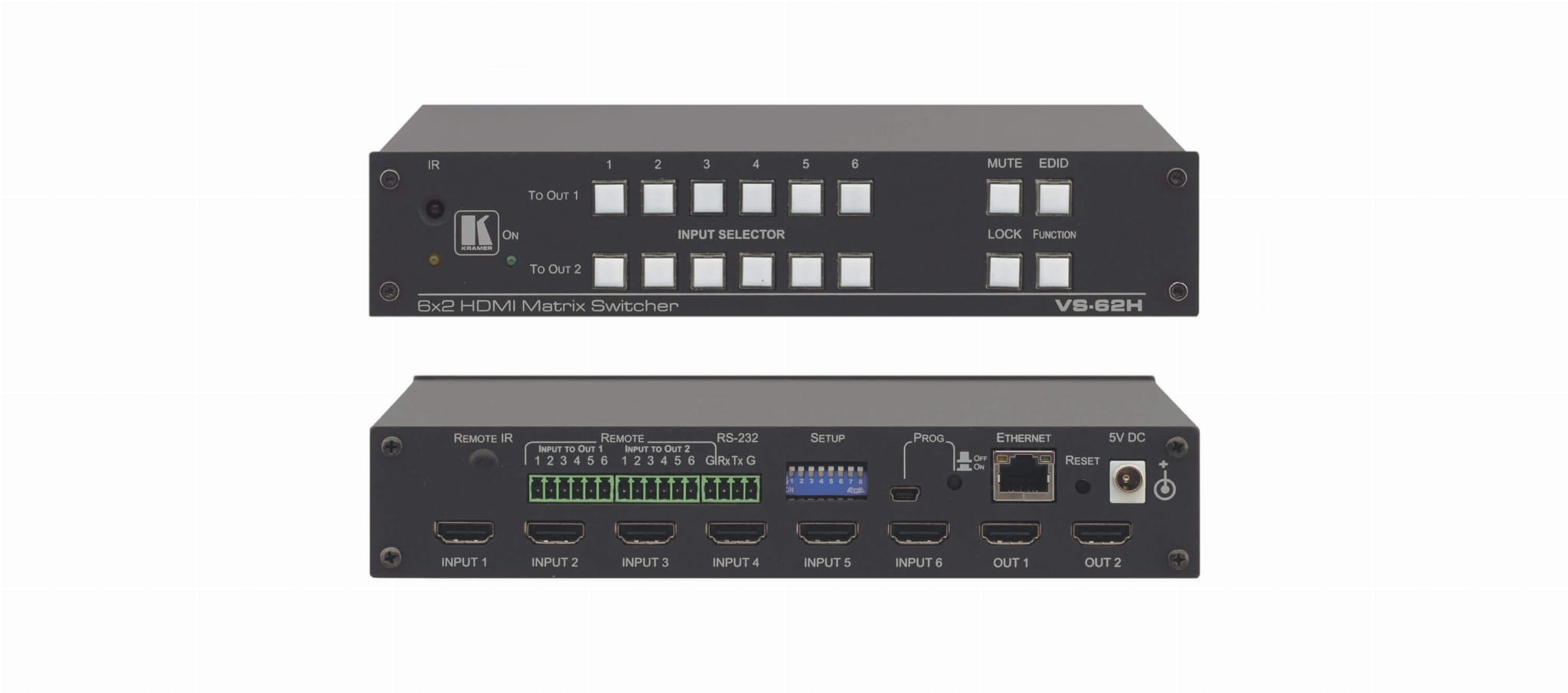

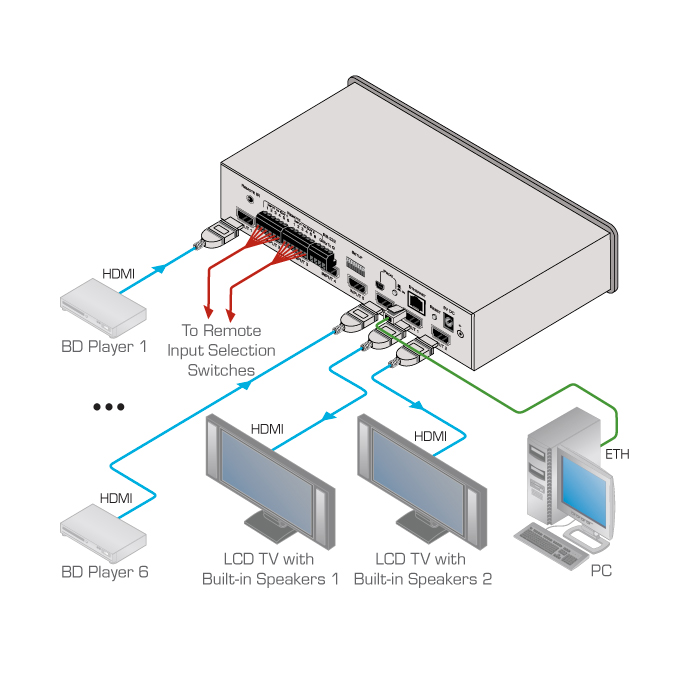

VS-62H to wysokiej jakości przełącznik matrycowy 6x2 dla sygnałów HDMI 4K@60Hz (4:2:0). Relokuje i wyrównuje sygnały i może kierować dowolne wejście do jednego lub obu wyjść jednocześnie. Obsługuje rozdzielczości do 4K@60Hz (4:2:0) i WUXGA
Charakterystyczne cechy produktu:
- Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
- Max. Resolution - Up to 4K (Ultra HD) and WUXGA.
- HDCP Compliant.
- HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync , ARC, HEAC pass−through, Dolby® TrueHD, Dolby Digital Plus, DTS−HD®, and 7.1 multi−channel audio.
- EDID Capture - Copies and stores the EDID from a display device.
- Programmable Step-In Functionality - When used in conjunction with compatible step−in devices, such as the SID−X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- True Video Clock Detection.
- Auto Switching Option - For either or both outputs, last−connected or priority switching.
- Non-Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Lock Button - Prevents unwanted tampering with the front panel.
- Internal Pattern Generator.
- Kramer Protocol 3000 Support.
- Embedded Web Pages - Provide remote configuration and operation.
- Static or Dynamic DHCP IP Addressing.
- Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS−232, Ethernet, contact closure, embedded Web server.
- USB Port - For upgrading firmware.
- Size - Compact Desktop - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.
Zastosowanie:
- Conference rooms
- Education
- Hospitality
DANE TECHNICZNE
| INPUTS: | 6 HDMI connectors. |
| OUTPUTS: | 2 HDMI connectors. |
| PORTS: | 1 Ethernet on an RJ−45 connector, 1 IR on a 3.5mm mini jack, 12 remote selection contact−closure switches on 13 terminal block pins, 1 serial port on a 3−pin terminal block, 1 program port on a mini USB connector. |
| MAX DATA RATE: | 8.91Gbps data rate (2.97Gbps per graphic channel). |
| COMPLIANCE WITH HDMI STANDARD: | HDMI and HDCP. |
| RESOLUTION: | Up to WUXGA, 4K x 2K. |
| SUPPORTED BAUD RATES: | 9600, 115200bps. |
| SUPPORTED WEB BROWSERS: | Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9; Windows XP: Google Chrome v25, FireFox v15; Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6. |
| POWER CONSUMPTION: | 5V DC, 880mA. |
| CONTROLS: | Front panel buttons, infrared remote control transmitter, RS−232, Ethernet, remote input selection switches. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| SHIPPING DIMENSIONS: | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H |
| SHIPPING WEIGHT: | 1.6kg (3.5lbs) approx. |
| INCLUDED ACCESSORIES: | Power adapter, IR transmitter. |
| OPTIONS: | External remote IR receiver cable, RK−1 19" rack adapter. |
