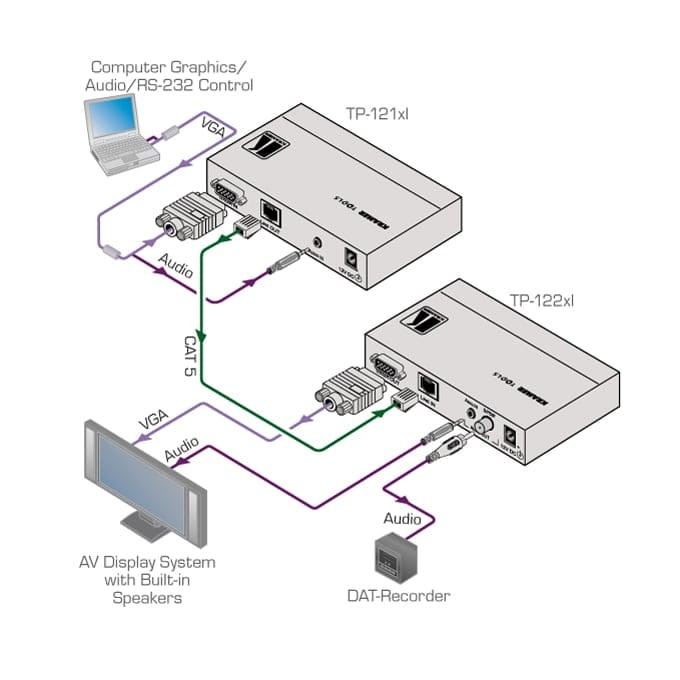

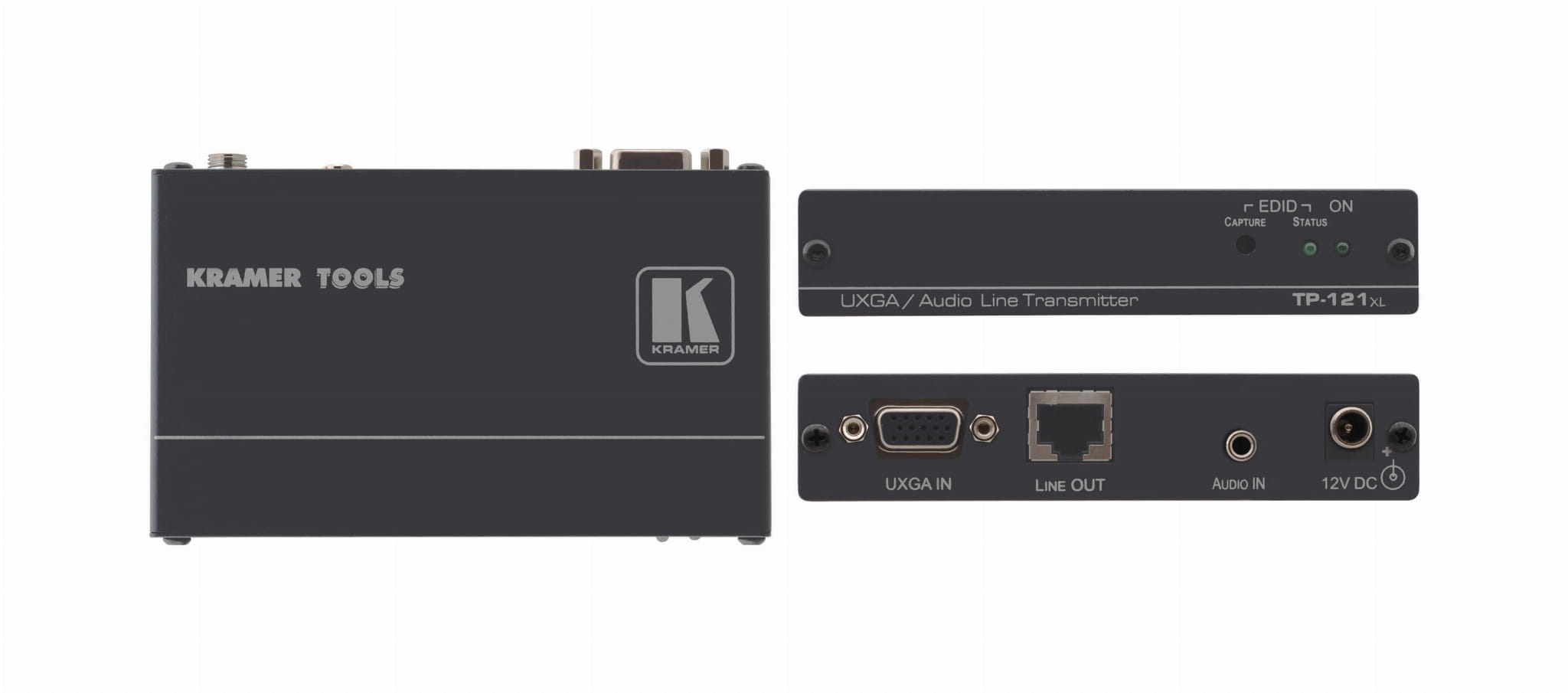

Transmiter sygnału wideo - KRAMER TP-121XL (nadajnik)
Cena regularna:
Cena (EUR): 405,00 €
Cena regularna:
Cena (EUR): 329,27 €
・Kup teraz i zapłać za 30 dni
towar niedostępny

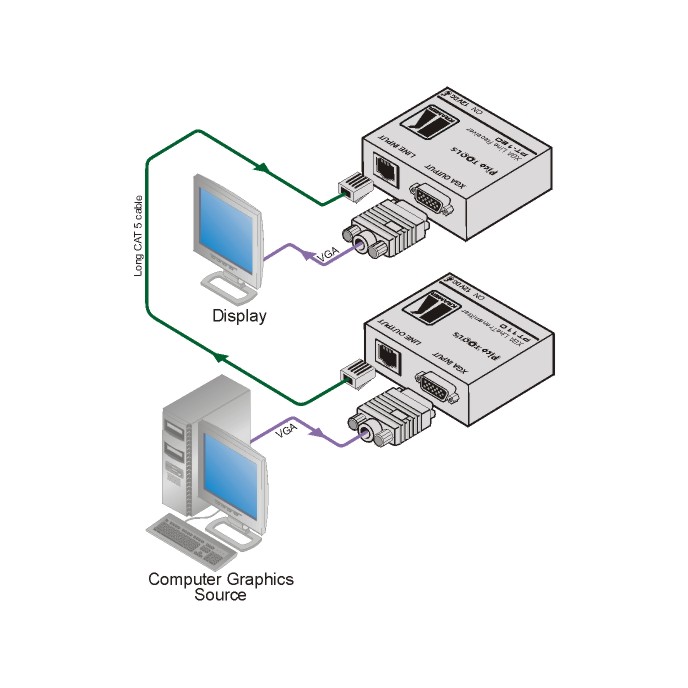

The PT-120xl is an extended range twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a WP-110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal.
Charakterystyczne cechy produktu:
- HDTV Compatible.
- Max. Resolution - WUXGA & 1080p.
- Level (Gain) & EQ (Peaking) Controls.
- System Range - Up to 250m (820ft). Greater distances possible depending on signal resolution and cable.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Zastosowanie:
- Presentation and multimedia applications
- Long-range graphics distribution for schools, hospitals, security
DANE TECHNICZNE
| INPUT: | 1 RJ−45 connector. |
| OUTPUT: | 1 VGA/UXGA on a 15−pin HD connector. |
| MAX. OUTPUT LEVEL: | 1.3Vpp. |
| RESOLUTION: | Up to WUXGA, 1080p. |
| RANGE: | Up to 250m (820ft). |
| S/N RATIO: | Paired with PT−110xl, better than 70dB (worst case). |
| CONTROLS: | Level: 0.7v to 1.3v, 300m; EQ: 300m @120MHz. |
| COUPLING: | DC. |
| POWER CONSUMPTION: | 12V DC, 350mA max. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| SHIPPING DIMENSIONS: | 17.40cm x 12.00cm x 8.60cm (6.85" x 4.72" x 3.39" ) W, D, H |
| SHIPPING WEIGHT: | 0.6kg (1.3lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−4PT 19−inch rack adapter. |
