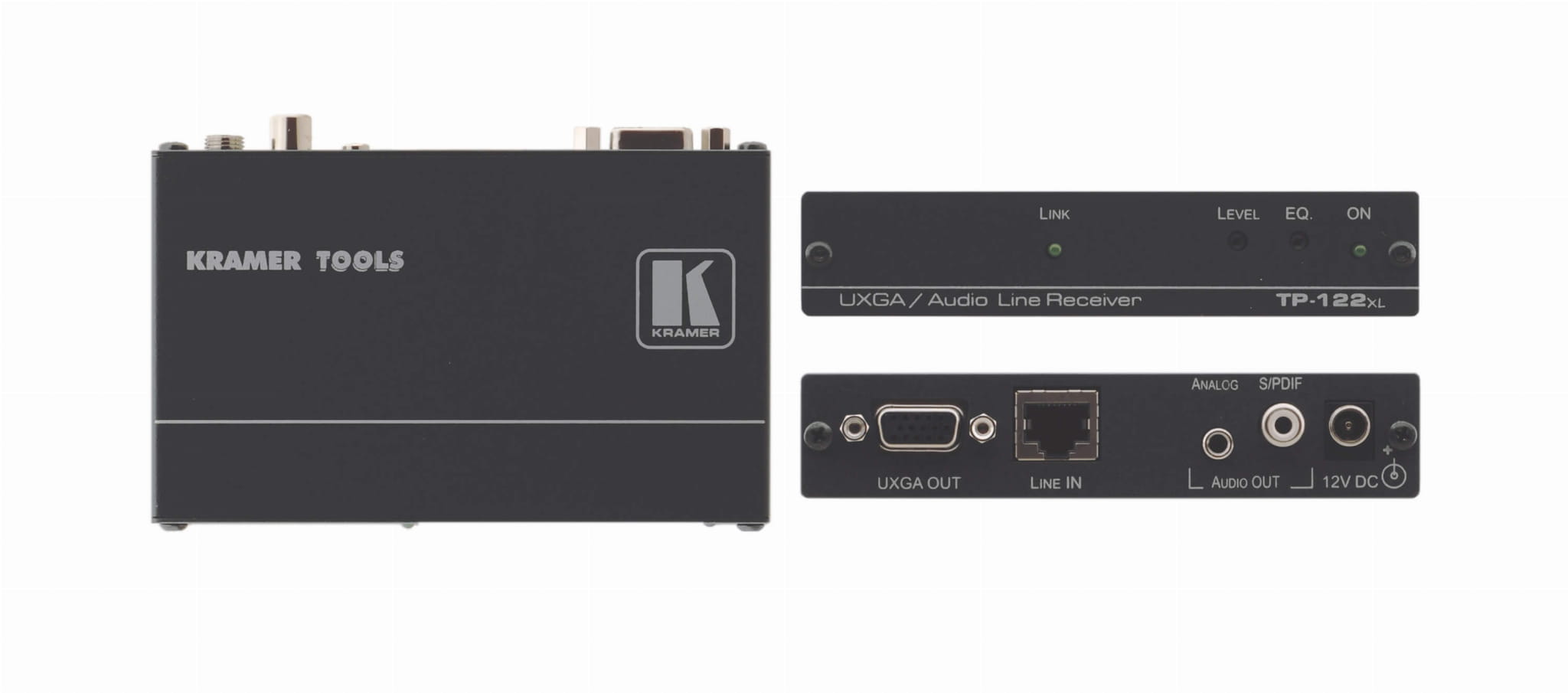

Transmiter sygnału wideo - KRAMER TP-122XL (odbiornik)
Cena regularna:
Cena (EUR): 362,00 €
Cena regularna:
Cena (EUR): 294,31 €
・Kup teraz i zapłać za 30 dni
towar niedostępny
The TP-122xl is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the twisted pair input signal to WUXGA video, unbalanced stereo and S/PDIF audio signals.
Charakterystyczne cechy produktu:
- Max. Resolution - WUXGA & 1080p.
- HDTV Compatible.
- Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments.
- System Range - More than 250m (more than 820ft).
- Level (Gain) and Equalization (Peaking) Adjustment.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.
- Size - Compact TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Zastosowanie:
- Presentation and multimedia applications.
- Long range graphics distribution for schools, hospitals, security, and stores.
DANE TECHNICZNE
| INPUTS: | 1 twisted pair on an RJ−45 connector. |
| OUTPUT: | 1 VGA on a 15−pin HD connector; 1 unbalanced stereo audio on a 3.5mm mini jack. |
| RESOLUTION: | Up to WUXGA and 1080p. |
| AUDIO BANDWIDTH (-3dB): | 20Hz to 20kHz @−3dB. |
| AUDIO S/N RATIO: | 84dB. |
| TOTAL GAIN: | Audio: Analog/analog: 0dB; Analog/SPDIF: –12dBFS. |
| COUPLING: | AC. |
| THD+N: | Audio:<0.02%. |
| POWER CONSUMPTION: | 12V DC, 190mA (370mA when powering both devices). |
| SHIPPING DIMENSIONS: | 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H |
| SHIPPING WEIGHT: | 0.5kg (1.0lbs) approx. |
| INCLUDED ACCESSORIES: | Power supply. |
| OPTIONS: | RK−3TR 19” rack mount adapter. |
